1969 Dodge Travco Before

To close out the year I thought I’d post some images from all the work that I’ve done on the bus over the last 12 (really 18, but who’s counting) months. It’s not finished yet, so the 1969 Dodge Travco After post will have to wait another month1. In the mean time though, here’s some pictures of what she used to look like, along with some of the damage I uncovered and repaired.

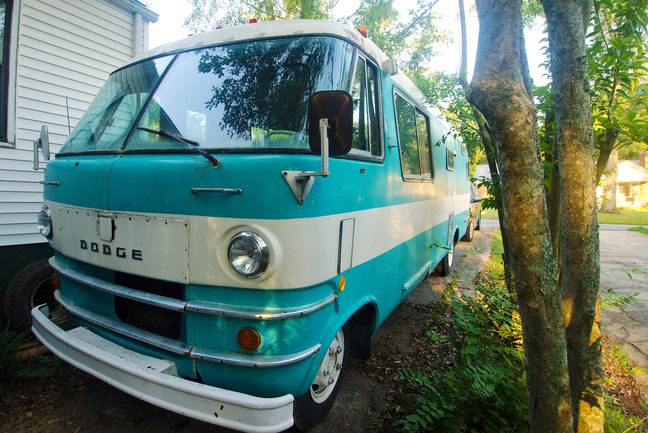

1969 Dodge Travco photographed by luxagraf
The big blue bus as she was when she arrived

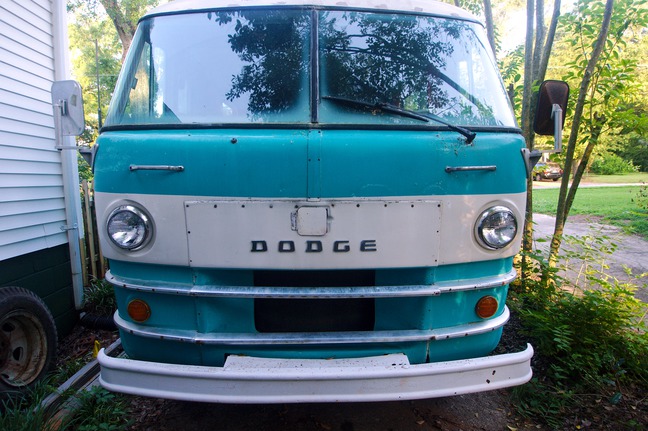

Front view of 1969 Dodge Travco RV photographed by luxagraf 1969 Dodge Travco photographed by luxagraf
1969 Dodge Travco interior pre-restoration photographed by luxagraf
The only shot I have of the original interior that’s in focus. Just imagine the driver’s seat isn’t there.

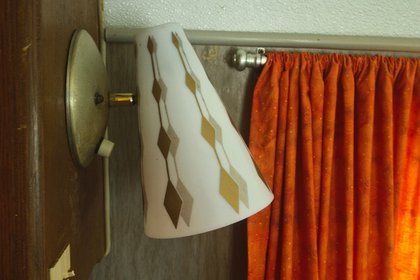

1969 Dodge Travco interior pre-restoration photographed by luxagraf 1969 Dodge Travco vintage lighting detail photographed by luxagraf 1969 Dodge Travco driver's side cockpit photographed by luxagraf 1969 Dodge Travco interior pre-restoration photographed by luxagraf 1969 Dodge Travco interior pre-restoration photographed by luxagraf

I know what you’re thinking, “hey, that looks pretty good, what is there to restore? Shouldn’t take long right?” Selective photography is why it looks good.

I started in the cockpit area because it was easiest thing to get at. The damage was pretty minimal too, just rip out the wood, throw away the fiberglass insulation and you’re ready to rebuild.

1969 Dodge Travco driver's side cockpit damage photographed by luxagraf

In fact tearing out the old wood and fiberglass was so easy I went ahead and did the rest. Long sleeves and a mask recommended.

1969 Dodge Travco interoir removed. photographed by luxagraf

Once that was done I dug into the actual structural damage. Fortunately there wasn’t that much. It was all water damage, most of which I knew about going in (except for under the water tank beneath the back bed, which was a surprise).

The window in the kitchen leaked badly and was the source of most water damage in the bus.

1969 Dodge Travco water damage kitchen window photographed by luxagraf

In the back something around the water tank leaked.

1969 Dodge Travco interior water damage photographed by luxagraf

It took quite a while to figure out what was leaking in the back and where. In the end several things could have been the culprit, my guess is it was a combination of all of them — the back window seal, the running light anchor screws, and a ding in fiberglass near the taillight. Once I had the kitchen window resealed and all the leaks in the back fixed I patched the floor in both spots with 5/8in marine grade plywood.

Plywood digression: quite a few people restoring RVs and trailers seem confused about marine grade plywood. It’s not that special, just expensive. Marine grade doesn’t mean it’s sealed or somehow better wood. Marine grade is a technical term for “not quite as shitty as Home Depot plywood”. All it means is that there’s no gaps in among the layers of ply. You still need to seal it. I used some industrial strength deck sealant on the bottom and several layers of paint on the topside.

Here’s the basic floor repair process:

1969 Dodge Travco interior water damage photographed by luxagraf
Identify damage.
1969 Dodge Travco interior water damage photographed by luxagraf
Remove rotted area.
1969 Dodge Travco interior water damage repaired photographed by luxagraf
Fill with marine grade plywood.

Rinse and repeat until you’re structurally sound again. Just make sure you’ve stopped all the leaks first.

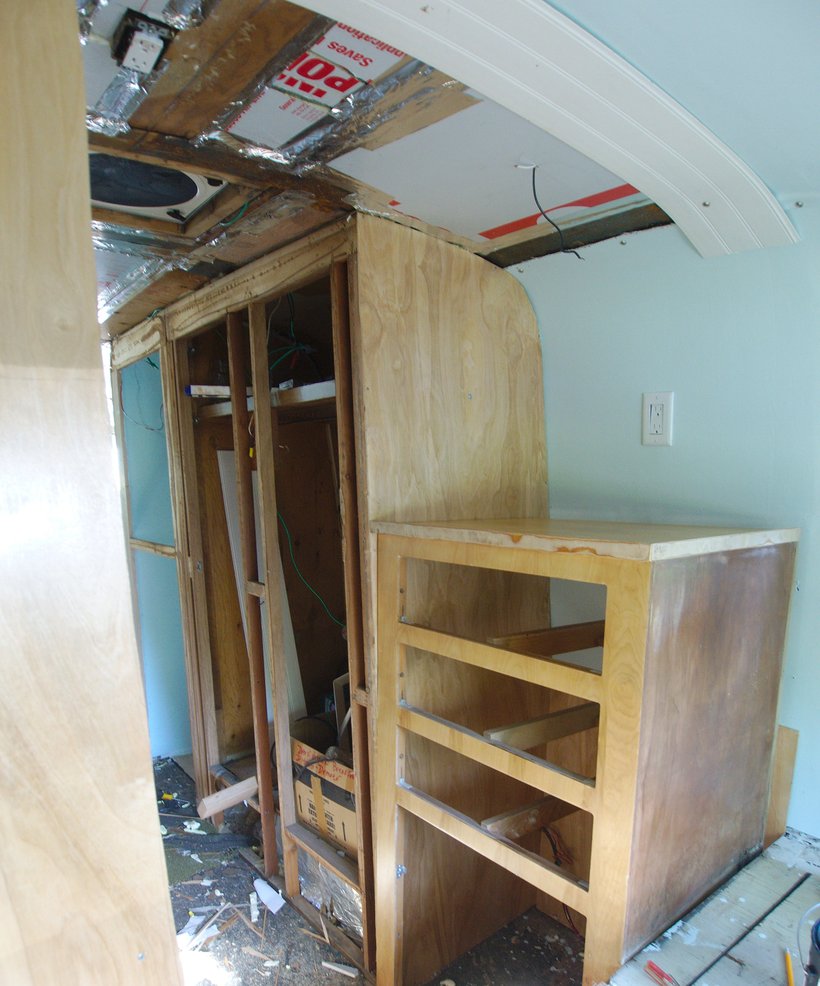

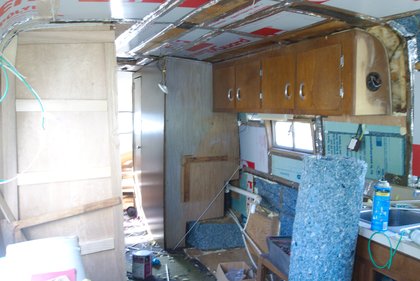

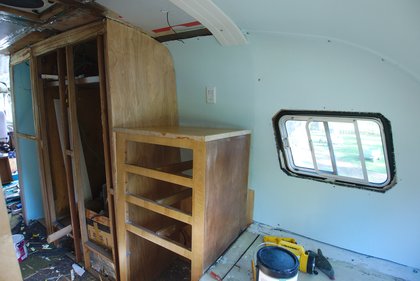

Once the leaks had been stopped and the floor was repaired I got to start on the actual fun stuff (to me anyway) — rebuilding the walls and cabinetry. I didn’t take nearly as many photo as I wish I had during the process of rebuilding, but here’s a few random shots of various things.

1969 Dodge Travco interior restoration photographed by luxagraf

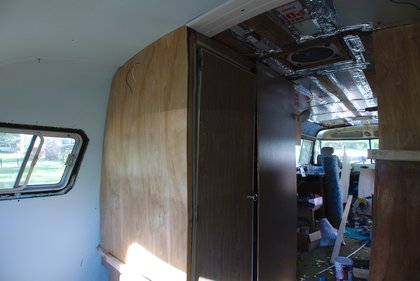

Where possible I left the original wood, all the cabinets and drawers basically. Elsewhere I replaced the blue tinted luan panels with 1/4in birch paneling sealed with a non-toxic floor finish. The insulation is combination of noise damping car insulation and R5 XPS board for a total R value of maybe 12. Better than nothing.
1969 Dodge Travco interior restoration photographed by luxagraf 1969 Dodge Travco interior restoration photographed by luxagraf 1969 Dodge Travco interior restoration photographed by luxagraf 1969 Dodge Travco interior restoration photographed by luxagraf

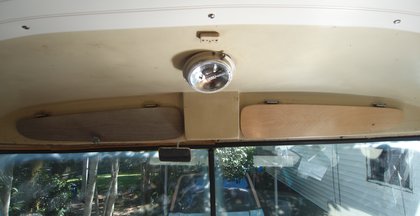

For the most part I tried to keep everything the way it was. I did add a few things here and there though, most noticeably the cabinets above the windows, which I built in part for the storage and in part to make it easier to do the ceiling/wall junction by, well, covering it up.

And finally, here’s a few more up-to-date images from about a month ago.

There’s still a few things to do, like reupholster the seats, install the floor, and install a water tank, but she’s very close. Close enough that I’d hit the road as soon as the floor goes in (next week if I have the time) were it not for the whole need-to-sell-our-house thing. Next year.


  1. That’s RV restoration time. To calculate that value in the actual time that most of you live in, just multiply by 2. Or 3.
